** Downloadable PDF Product Information Sheet **

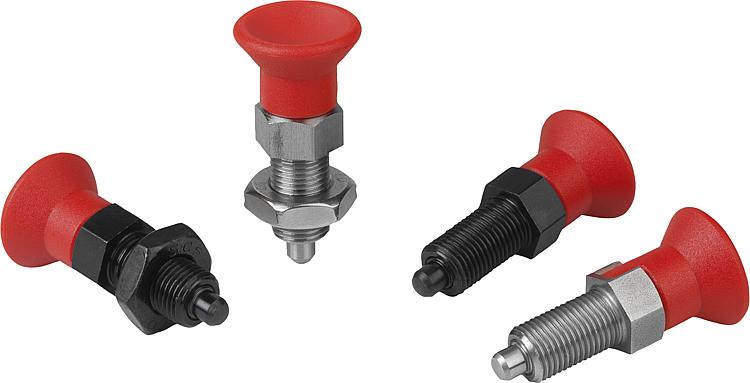

KIPP Locking Bolt:  K0338 – INCH

Mushroom grip knob in red thermoplastic.

Steel – Indexing pin hardened:  quality class 5.8 ground & with black oxide finish

Note: Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged. Form C or D is recommended for applications where the plunger remains disengaged over a long period and the pin should be prevented from springing back.

Accessory: Spacer rings K0665

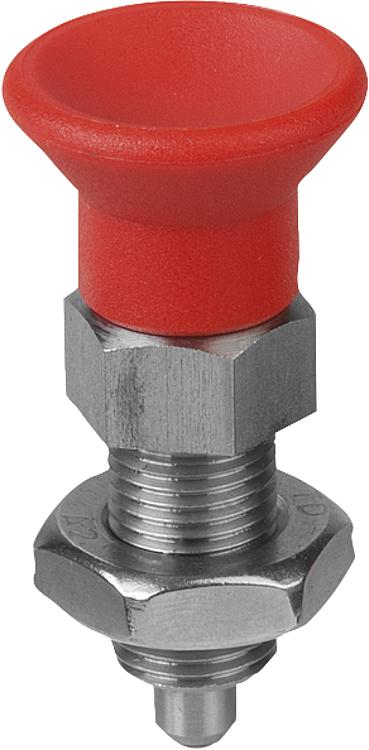

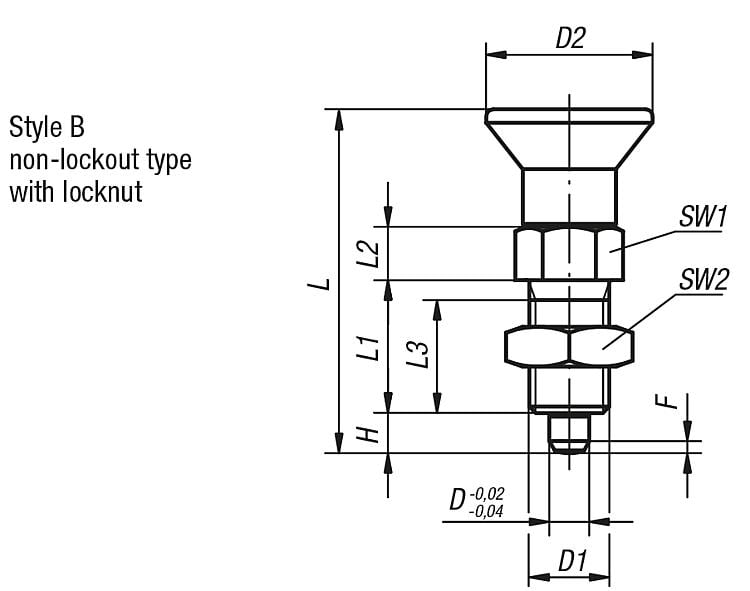

FORM B: NON LOCKOUT TYPE WITH LOCKNUT

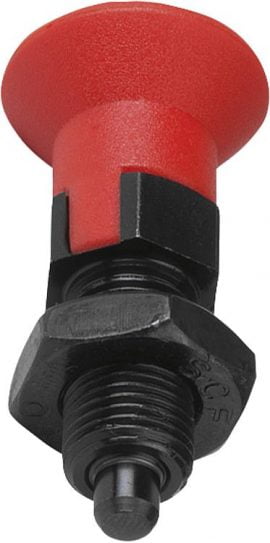

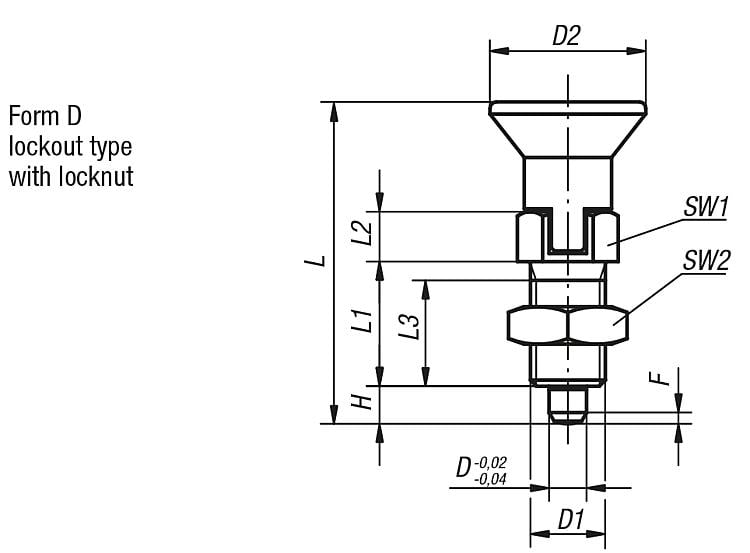

FORM D: LOCKOUT TYPE WITH LOCKNUT

Available Options:
