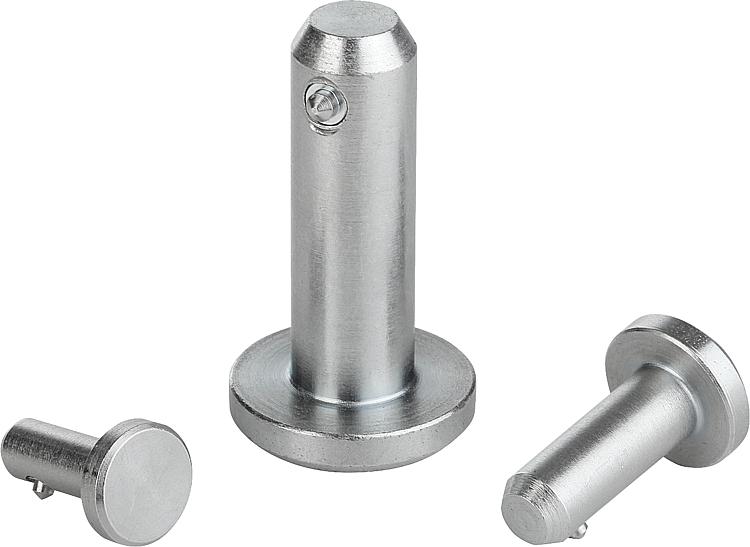

KIPP Locking pins with axial lock K0772

KIPP Locking pins with axial lock K0772

Material:  Steel.

Version: galvanized.

Note: Locking pins are used for quick and easy fixating and joining of parts and workpieces.

Shearing force double-shear (F) = S · τ aB max.Assembly:Observe the assembly aid dimension X in the workpiece.

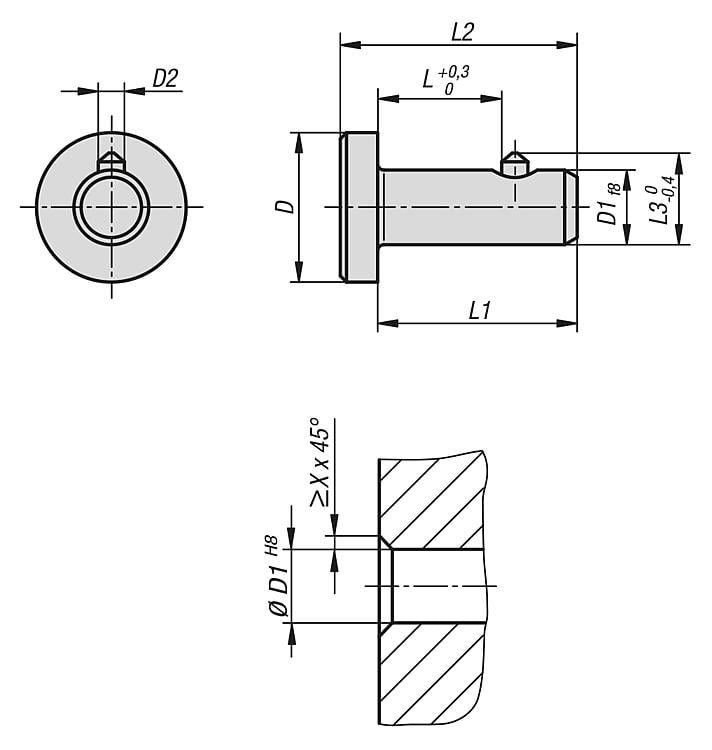

Drawing reference: Chamfer for counterpart Xmin. x 45°

Available Options:
