** Downloadable PDF Product Information Sheet **

Material: Handle and thrust washer fibreglass reinforced PA66 plastic, black.
Hinge pins 1.4305 bright stainless steel. Locking pin 1.0718 blue passivated steel.
Spring clip passivated 1.4310 stainless steel.

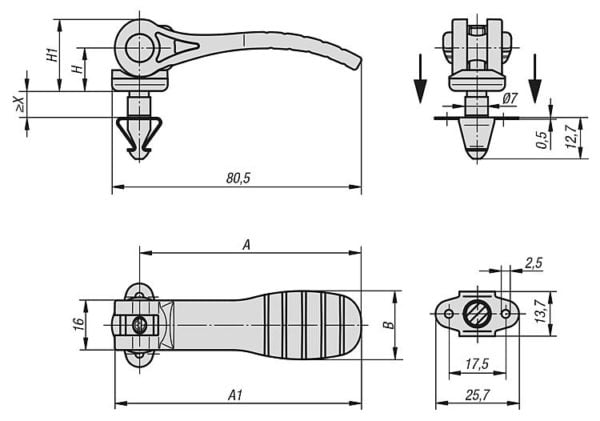

Cam Lever with quick lock KIPP K0751  – A sheet metal element can be positioned by engaging the spring clip. The sheet metal element is then clamped using the handle.
Plastics are subject to creeping under load (retardation), this can cause reduced clamping force.

Please see attached PDF for further information

Available Options:
