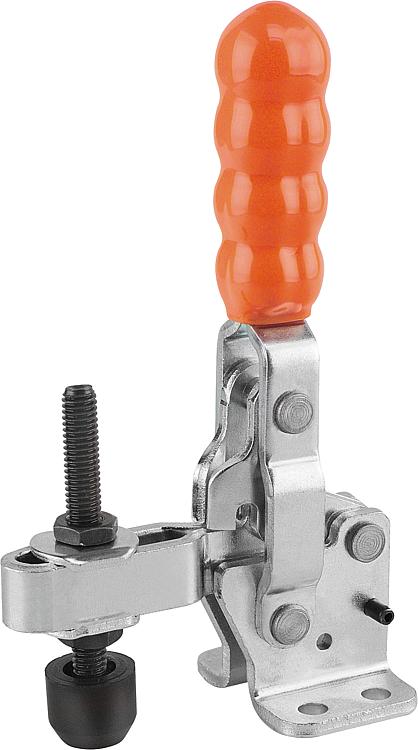

Toggle Clamps Vertical with flat foot and adjustable clamping spindle


Material: Steel or stainless steel

Version: Galvanized and chromed.
Clamping spindle and nuts phosphated.
Stainless steel bright.
Plastic handle oil-resistant.

Note: The opening angle between the holding arm and the handle can be reduced or increased by repositioning or removing the stop pin.

A neoprene pressure pad is supplied with versions K0058.0075, K0058.0100 and K0058.0150.

An angle bracket not supplied however available as an accessory – see product data sheet.

Angle Bracket cannot be supplied in stainless steel with versions K0058.0075N, K0058.0150N and K0058.0250N.

Accessories sold separately: (please refer to attached PDF data sheet & contact us for availability)

Angle Bracket K0098.02,  K0098.04, K0098.06
Plastic Grips K0100.16 to K0100.35
Clamping Spindles K0101.05025 to K0101.11080
Clamping Spindles K0102.05035 to K0101.16150
Clamping Spindles K0103.04032 to K0103.12100
Protective Caps K0106.01 to K0106.07
Locking Washers K0107.05 to K0107.16

Drawing reference:

1) stop pin position 1
2) stop pin position 2
